ALI Certified 8,000 lb. Capacity Hobbyist Lift

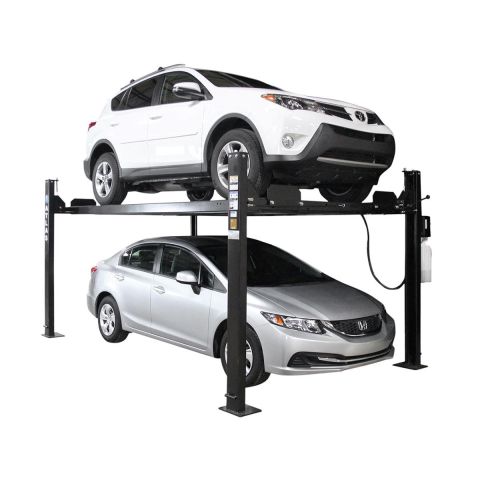

The Atlas® Apex 8 is an ALI CERTIFIED four post hobbyist lift designed and built for use by Mr. Homeowner or restoration shop.
This Certified Lift Includes FREE:
- 1 Jack Tray
- 4 Plastic Drip Trays
- Approach Ramps
- Wheel Stops
- 1 Caster Kit With Polyurethane Wheels
- ALI Certified
- 8,000 lb. Capacity
- Atlas® Powder Coat Finish
- Single Point Lock Release
- Lock Ladder Design
- Double Lock Safety System
- Anchor Bolts Optional (Sold Separately)
- Steel Approach Ramps Included
- One Jack Tray
- Four Plastic Drip Trays
- Four Wheel Stops Included
- Two Rubber Wheel Chocks Included
- 1 Caster Kit With Polyurethane Wheels
- Perfect For Storing Or Working On Vehicles
- Shipping Weight: 1,800 lbs.
| Atlas® Apex 8 Specifications | |
| Capacity | 8,000 lb. |
| Lifting Height To Top of Runway | 72" (6") |
| Clearance Under Runways | 67 1/2" (5' 7 1/2") |
| Height of Columns (Including Nuts) | 87 1/2 (7' 3 1/2") |
| Overall Width (Without Motor or Casters) | 104 1/4 (8' 8 1/4") |
| Overall Width (With Motor) | 114 1/2" (9' 6 1/2") |
| Overall Length without Approach Ramps (Including Lock Release Bar) | 186 1/2" (15' 6 1/2") |
| Overall Length with Approach Ramps (Including Lock Release Bar) | 219 1/2" (18' 3 1/2") |
| Approach Ramps | 37 1/2" (3' 1 1/2") |
| Runway Width | 18 3/4 |
| Runway Rail Width | 2 1/2" |
| Runway Length | 165 1/2" (13' 9 1/2") |
| Runway Thickness | 4 1/2" |
| Width Between Runways | 38" (3' 2") |
| Width Between Runway Rails | 33 (2' 9") |
| Outside Runway to Outside Runway | 75 1/4 (6' 3 1/4") |
| Size of Column | 6" x 3 3/8" |
| Clearance Between Columns | 96" (8') |
| Length Between Columns | 157 3/4" (13' 1 3/4") |
| Base of Column | 11 1/2" x 9 3/4" |
| Maximum Wheel Base | 153 1/2 (12' 9 1/2") |
| Drive Thru (Outside of tire to outside of tire) | 80 1/4" (6' 8 1/4") |
| Cable Diameter | 7/16" (.4375") |
| Gauge of Steel | 6 Gauge (.1875" / 3/16" / 4.75mm) |
| Motor/Electrical Requirement | 110 Volt, Single (1) Phase; A 30 amp Breaker Is Recommended |
| Oil Requirement | 2.6 Gallons AW32/AW46 |
| Shipping Weight | 2,000 lb. |
Equipment Details Video
| Atlas® Apex 8 Manual | Download |
| Weight | 1800 lbs |
|---|---|
