Atlas Equipment Platinum PTC400 + PWB90XL Combo Package

Features and Benefits:

• Platinum PTC400 Tire Changer + PWB90XL Wheel Balancer Combo Package
• Platinum Center Post/Swing Arm Tire Changer
• Left Hand Assist Arm Included
• Air Operated Bead Breaker (External Air Supply Required)
• Electric Rotation (110volt)
• Metal Mount/Demount Head w/ Replaceable Plastic Inserts
• External Flexible Bead Blasting System
• Filter/Regulator/Lubricator Included
• Platinum 3D Video Motorized Spin Balancer
• High-Resolution Video Monitor Display
• Super Automatic 3D Data Entry (touchless sonar to measure rim width)
• Laser Line to guide weight placement
• LED light illuminates wheel interior
• Static and dynamic balancing modes
• Optimatch, FES (Split), OPF (Opposite Position) Functions
• Special ALU-S and other ALU Programs
• NWN (no wheel need) System
• Self-Diagnosing and Self-calibrating
• Display in grams or ounces, and in mm or inches.
• Replacement Parts & Wear Items Always Available
• 2 Year Parts Only Warranty on TC and WB
• Clamping Range: 10" - 26"
• Max Tire Diamter: 43"
• Max Wheel Width: 15" (13" if reversed)
• Air Requirement: 120-145 PSI
• PTC400 Shipping Weight: 620 lbs.
• Balancing Rim Sizes (Cars & Light Trucks): 10" - 30"
• Balancing Rim Width: 1 1/2" - 20"
• Shaft Size: 40mm
• Max. Wheel Weight: 165 lbs.
• Balancing Speed: 130 rpm
• Accuracy: 1 gram
• Weight Position Resolution: 1.4 Degrees
• Power Supply (Both): 110volt
• PWB90XL Shipping Weight: 290 lbs.
• This part number "FREIGHT PREPAID"

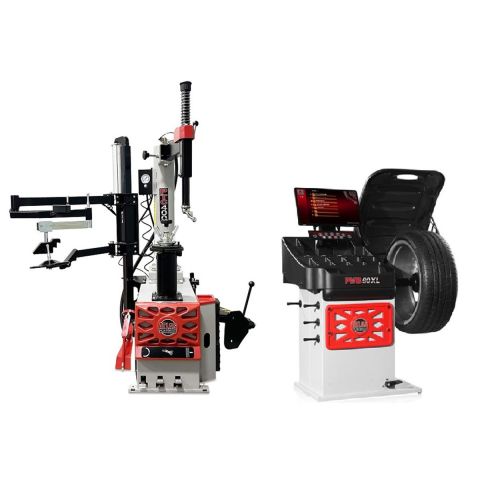

This combo package includes the Atlas® Platinum PTC400 tire changer and the Atlas® Platinum PWB90XL wheel balancer.

The Atlas® Platinum PTC400 combines all the best features and qualities of the popular PTC300 and a versatile center post design. The PTC400 is an Italian engineered Swing-Arm Tire Changer that comes standard with a Left-Hand Bead Pressing and Bead Lifting Assist Arm to make changing the most challenging tires a breeze.The PTC400 boasts a center post with a 26-inch rim capability, high torque 110V electric turntable, anodized aluminum bead breaker cylinder, integrated bead blast system, and a 2-year warranty. The Atlas® PTC400 requires some assembly after purchase..

The Atlas® Platinum PWB90XL features Super Automatic 3D Data Entry via a single data entry gauge for offset and diameter, and touchless sonar for rim width (no old-fashioned measuring arm). Using the weight placement arm, the user can choose the most convenient location to put the weights, and a Laser Line guides the operator back to the exact location after the spin cycle, eliminating any possibility for human error and ensuring first time zero/zero results. The Fast & Easy Split function (FES) makes hiding adhesive weights behind the spokes a breeze and the Opposite Weight Function (OWF), allows the operator to change the weight application position from 12 o'clock to 6 o'clock for convenient access when applying adhesive weights. Optimization of tire and wheel unbalance (match mounting) is possible with the PWB90XL via OPTIMATCH software and makes balancing even the most difficult assemblies easy and efficient.Make no mistake, the PWB90XL is a real top of the line wheel balancer, competing with those big name brands seen as the benchmark for premium quality.

The Atlas® Platinum range of wheel service equipment incorporates the highest quality Italian designed components and engineering to assure it is the best value available at its price point.
