Atlas Equipment Platinum PTC400 + PWB50 Combo Package

Features and Benefits:

• Platinum PTC400 Tire Changer + PWB50 Wheel Balancer Combo Package
• Platinum Center Post/Swing Arm Tire Changer
• Left Hand Assist Arm Included
• Air Operated Bead Breaker (External Air Supply Required)
• Electric Rotation (110volt)
• Metal Mount/Demount Head w/ Replaceable Plastic Inserts
• External Flexible Bead Blasting System
• Filter/Regulator/Lubricator Included
• Platinum Computer Controlled Motorized Spin Balancer
• Automatic & Peadl Controlled Brake
• Hood w/ Automatic Start/Stop When Lowered/Raised
• Static & Dynamic Balancing Modes
• Optimatch, FES (Spilt), OPF (Opposite Position) Functions
• Special ALU-S & Other ALU Programs
• Automatic 2D Data Entry
• NWN (No Wheel Needed) System
• Self-Diagnosing & Self-Calibrating
• Display in Grams or Ounces/MM or Inches
• Replacement Parts & Wear Items Always in Stock
• 2 Year Parts Only Warranty on TC and WB
• Clamping Range: 10" - 26"
• Max Tire Diameter: 43"
• Max Wheel Width: 15" (13" if reversed)
• Air Requirement: 120-145 PSI
• PTC400 Shipping Weight: 620 lbs.
• Balancing Rim Sizes (Cars & Light Trucks): 10" - 30"
• Balancing Rim Width: 1 1/2" - 20"
• Shaft Size 40mm
• Max Wheel Weight: 165 lbs.
• Balancing Speed: 130 rpm
• Accuracy: 1 gram
• Power Supply for both: 110volt
• PWB50 Shipping Weight: 230 lbs.
• This Part Number "Freight Prepaid"

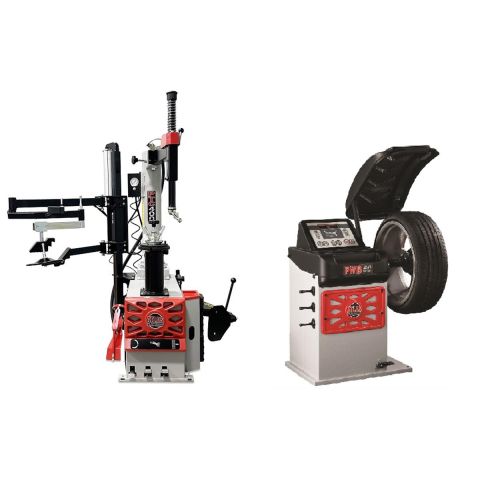

This combo package includes the Atlas® Platinum PTC400 tire changer and the Atlas® Platinum PWB50 wheel balancer.

The Atlas® Platinum PTC400 combines all the best features and qualities of the popular PTC300 and a versatile center post design. The PTC400 is an Italian engineered Swing-Arm Tire Changer that comes standard with a Left-Hand Bead Pressing and Bead Lifting Assist Arm to make changing the most challenging tires a breeze.The PTC400 boasts a center post with a 26-inch rim capability, high torque 110V electric turntable, anodized aluminum bead breaker cylinder, integrated bead blast system, and a 2-year warranty. The Atlas® PTC400 requires some assembly after purchase..

The Atlas® Platinum PWB50 is an electronic wheel balancer with an easy to read LED display and that offers Automatic 2D Data Entry via a single data entry gauge. Whilst there are a multitude of ALU weight placement configurations, the weight placement arm actually enables the operator to choose the most convenient position for the weights, and the machine will guide the operator back to that exact position after the spin cycle, ensuring accurate dynamic adhesive weight application. The Fast & Easy Split function (FES) makes hiding adhesive weights behind the spokes a breeze and the Opposite Weight Function (OWF), allows an operator to change the weight application position from 12 o'clock to 6 o'clock for convenient access when applying adhesive weights. Optimization of tire and wheel unbalance (match mounting) is possible with the PWB50 via OPTIMATCH software and makes balancing even the most difficult assemblies easy and efficient.

The Atlas® Platinum range of wheel service equipment incorporates the highest quality Italian designed components and engineering to assure it is the best value available at its price point.
