Atlas Equipment Platinum PTC300 + PWB70 Combo Package (WILL CALL)

Features and Benefits:

• Platinum PTC300 Tire Changer + PWB70 Wheel Balancer Combo
• Platinum Rim Clamp/Swing Arm Tire Changer
• Left Hand Assist Arm Included
• Extra-Large Star-Shaped Turntable
• Air Operated Jaws & Bead Breaker (External Air Supply Required)
• Electric Turntable (110volt)
• Metal Mount/Demount Head w/ Replaceable Plastic Inserts
• Column Mounted Inflator Box w/ Gauge
• Filter/Regulator/Lubricator Included
• Built-In "Beadblaster"
• Platinum Computer Controlled Motorized Spin Balancer
• Electric Brake w/ Smart Approach Function
• Large Wheel Weight Tray
• Hood w/ Auto Start & Stop When Lowered/Raised
• Static & Dynamic Balancing Modes
• Optimatch, FES (Split), OPF (Opposite Position) Functions
• Special ALU-S & Other ALU Programs
• Automatic 2D Data Entry
• NWN (No Wheel Needed) System
• Self-Diagnosing & Self-Calibrating
• Display in Grams or Ounces
• Laser Line to Guide Weight Placement
• LED Light Illuminates Wheel Interior
• Replacement Parts & Wear Items Always Available
• 2 Year Parts Only Warranty on TC and WB
• External Locking Rim Dimension: 10" - 24"
• Internal Locking Rim Dimension: 12"- 26"
• Max Tire Diameter: 43"
• Max Wheel Width (Bead Breaker): 15"
• Air Requirement: 120-145 PSI
• PTC300 Shipping Weight: 620 lbs.
• Balancing Rim Sizes (Car & Light Trucks): 10" - 30"
• Balancing Rim Width: 1 1/2" - 20"
• Shaft Size: 40mm
• Max Balancing Weight: 165 lbs.
• Balancing Speed: 130 rpm
• Accuracy: 1 gram
• Weight Position Resolution: 1.4 Degrees
• Power Supply (Both): 110volt
• PWB70 Shipping Weight: 280 lbs.
• This part number "WILL CALL ONLY"

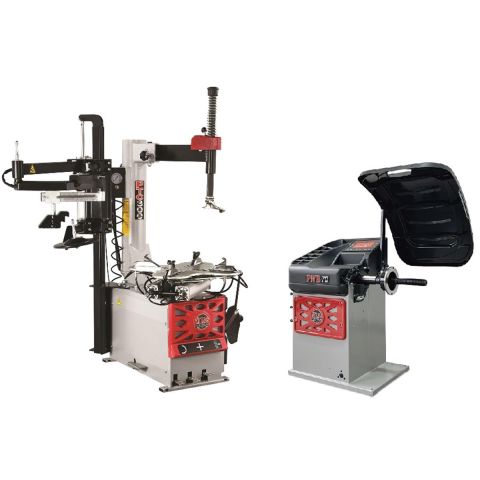

This combo package includes the Atlas® Platinum PTC300 tire changer and the Atlas® Platinum PWB70 wheel balancer.

The Platinum PTC300 represents the evolution of the most familiar tire changer configuration found in high volume tire shops around the world. The PTC300 is an Italian engineered Swing-Arm Tire Changer that comes standard with a Left-Hand Bead Pressing and Bead Lifting Assist Arm to make changing the most challenging tires a breeze.The PTC300 boasts a 26-inch clamping capability, high torque 110V electric turntable, anodized aluminum bead breaker cylinder, and integrated bead blast system.

The Atlas® Platinum PWB70 is an electronic wheel balancer that improves on the already high quality PWB50 model. The Platinum PWB70 features a bigger wheel weight tray, a larger hood, and also adds an LED light and Laser Line guide for more precise wheel weight placement.

The Platinum PWB70 comes standard with an easy to read LED display and Automatic 2D Data Entry via a single data entry gauge. The Fast & Easy Split function (FES) makes hiding adhesive weights behind the spokes a breeze and the Opposite Weight Function (OWF), allows an operator to change the weight application position from 12 o'clock to 6 o'clock for convenient access when applying adhesive weights. Optimization of tire and wheel unbalance (match mounting) is possible with the PWB70 via OPTIMATCH software and makes balancing even the most difficult assemblies easy and efficient.

The Atlas® Platinum range of wheel service equipment incorporates the highest quality Italian designed components and engineering to assure it is the best value available at its price point. The Atlas PTC300 requires some assembly after purchase.
