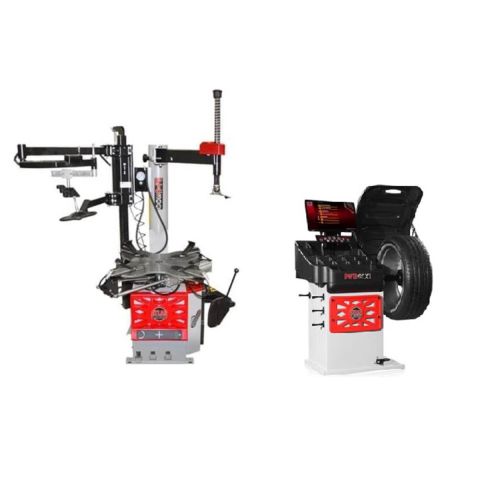

Atlas Equipment Platinum PTC300 Tire Changer + PWB90XL Wheel Balancer Combo Package

Platinum Tire Changer & Wheel Balancer Combo Package:

Atlas® Platinum PTC300 Tire Changer

• Rim Clamp/Swing Arm Tire Changer
• Extra Large Star Shaped Turntable
• Built-in "Beadblaster"
• Left Hand Assist Arm, Pressing/Lifting disk and Pressing Block
• Oiler, Filter, Regulator included (external air supply required)
• Plastic Protectors included
• Tire Tool, Lube Bucket, and Lube Brush Included
• Inflation Box w/ Gauge Included

Atlas® Platinum PWB90XL Wheel Balancer

• Platinum 3D Video Motorized Spin Balancer
• Italian Engineering and Components
• High-Resolution Video Monitor Display
• Super Automatic 3D Data Entry (touchless sonar measures rim width)
• Laser Line to Guide Weight Placement
• LED Light Illuminates Wheel Interior
• Static and Dynamic Balancing Modes
• Optimatch, FES (Split), OPF (Opposite Position) Functons
• Special ALU-S and other ALU Programs
• NWN (no wheel need) System
• Self-Diagnosing and Self-Calibrating
• Exceptional Stability in Reading the Unbalance Between Planes
• Display in grams or ounces, and mm or inches
• No anchor-down installation needed
• Plastic Quick Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers Included
• This part number FREIGHT PREPAID

This combination package includes the Atlas® Platinum PTC300 rim-clamp swing arm tire changer & the Atlas® Platinum PWB50-110V computerized spin balancer. This combination is perfect for commercial car repair shops and high volume tire shops. Both machines are 110volt operated, both are CE approved, and both carry the Atlas® Platinum 2 year parts only warranty. This part number is WILL CALL ONLY.

Atlas® Platinum PTC500 Specifications

• External Locking Rim Dimensions: 10" to 24"
• Internal Locking Rim Dimensions: 12" to 26"
• Maximum Tire Diameter: 43"
• Maximum Wheel Width (Bead Breaker): 15"
• Turntable Rotating Speed: 7 rpm
• Bead Breaker: 6924 LB. Force
• Operating Pressure: 145 PSI
• Electric Requirement: 110volt
• Shipping Weight: 620 lbs

• Max Tire Diameter: 43"
• Rim Sizes (Cars & Light Trucks): 10"-30"
• Rim Width: 1 1/2" - 20"
• Shaft Size: 40mm
• Max Wheel Weight: 165 lbs.
• Balancing Speed: 130 rpm
• Data Entry: Super Automatic 3D
• Measurements: Standard or Metric
• Accuracy: 1 gram
• Weight Position Resolution: 1.4 Degrees
• Self Calibration: Yes
• Cycle Time: 7 Seconds
• Power Supply: 110v
• Shipping Weight: 290

Accessories Available

• Center Post Adapter
• Light Truck Adapter Kit
• Universal Lugcentric Adapter
• Air-Operated Wheel Lift
